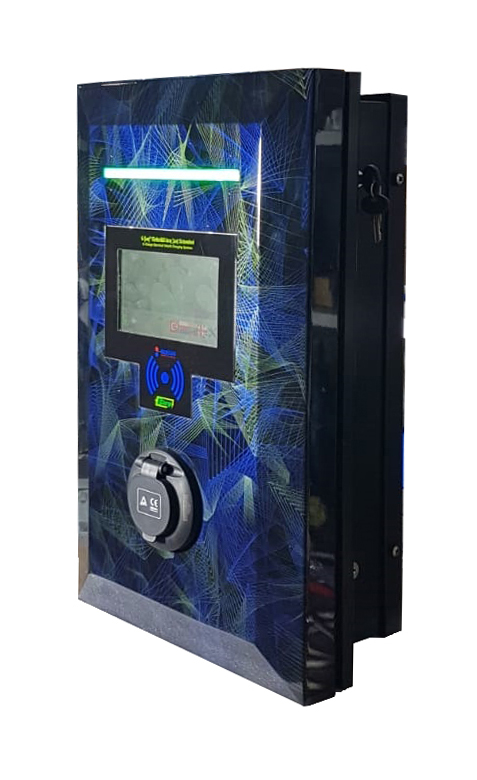

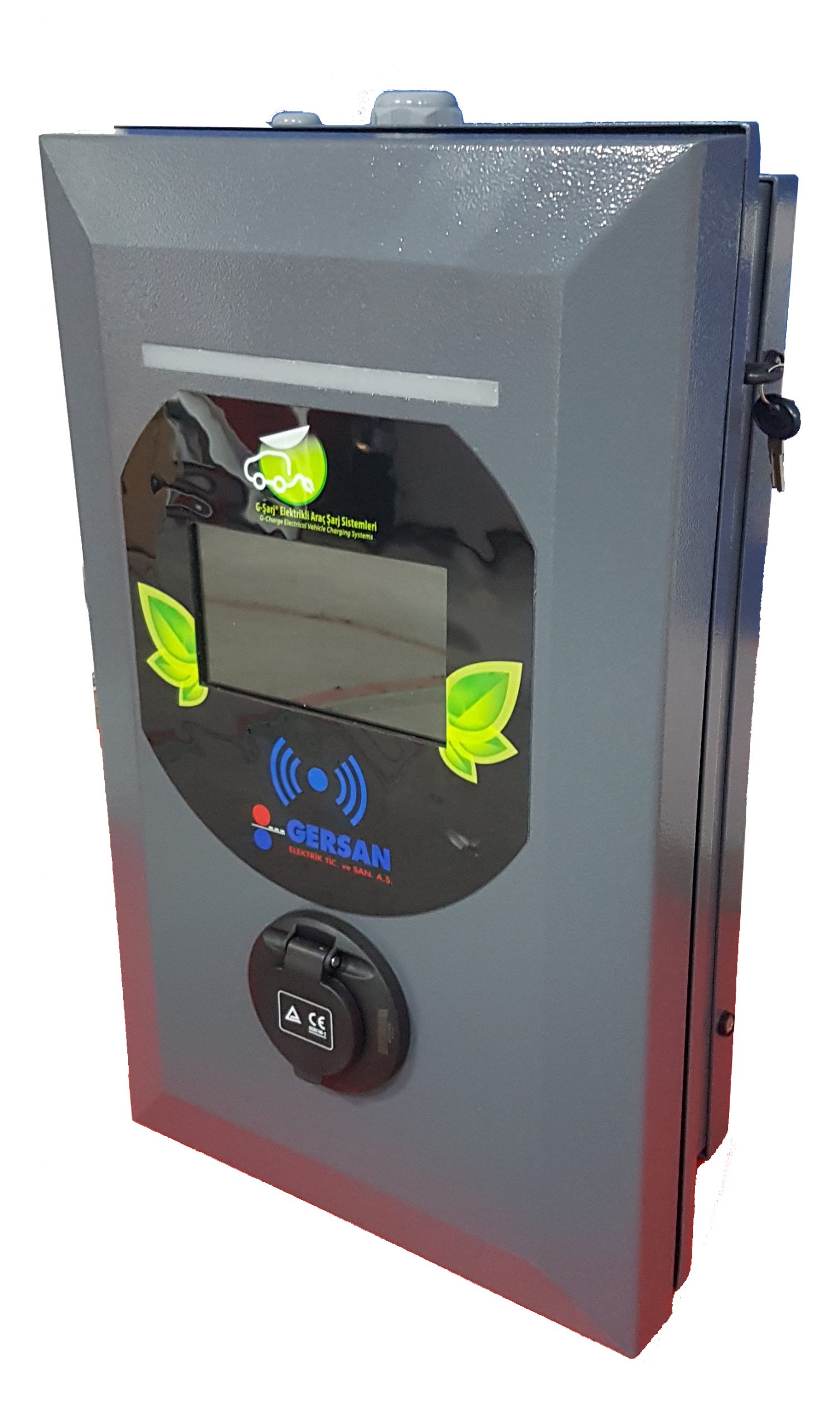

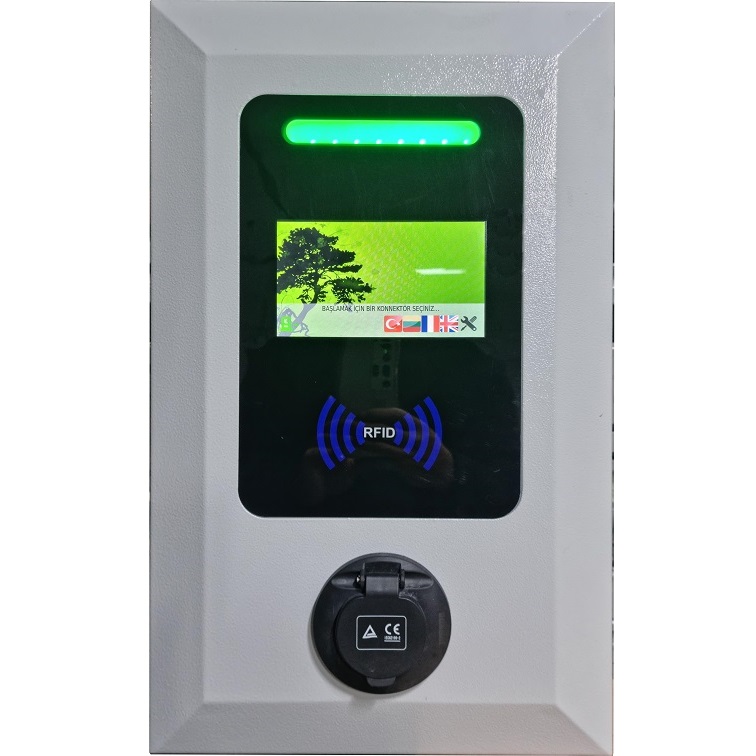

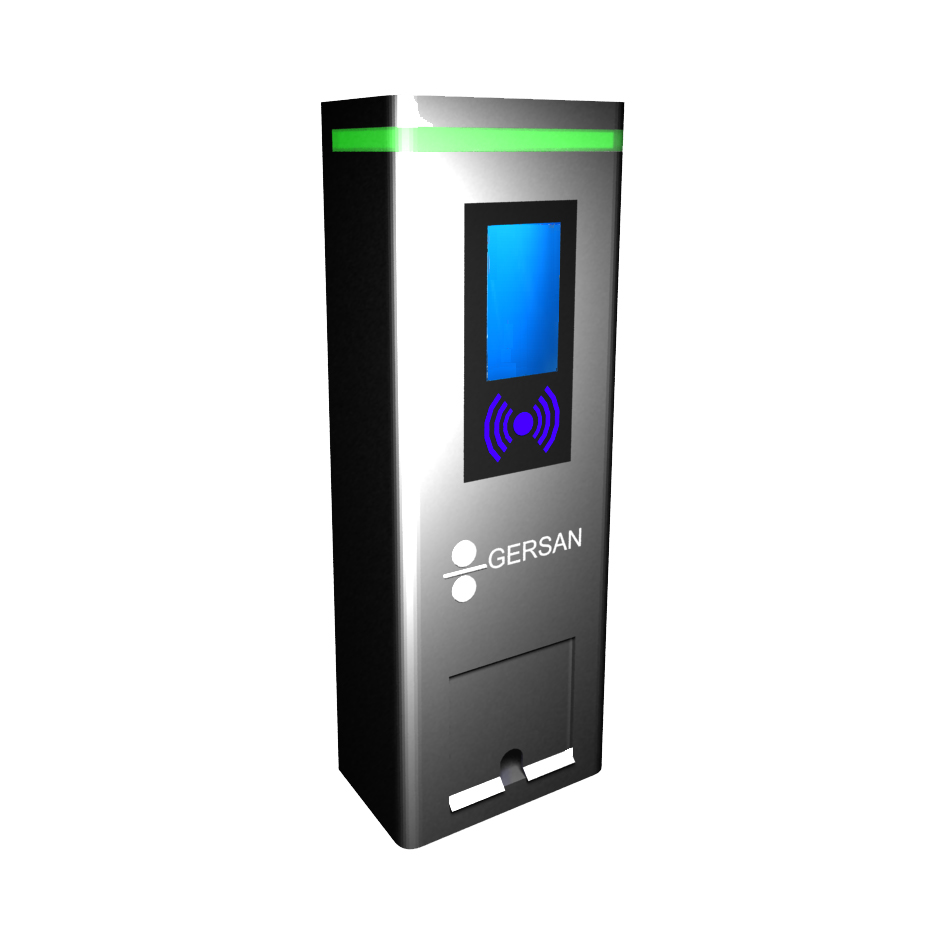

Wall Type Smart Charging Station (With Internal Meter) 3x32A – 22kW

Smart type Internal Metering (payment system) charging station has a three-phase (3P) charging current up to 32A (22kW) and can charge in varying times depending on the capacity of the vehicle.

The station includes functions such as a 7″ touch screen, internal integrated kWh energy meter, RFID card reader, TCP/IP communication, and OCPP compatible software . The touch screen contains information/guidance in different language options.

The station has 1 Mode-3 Type-2 charging socket in accordance with IEC 62196 standards. Optionally, up to 4 sockets can be installed to charge 4 vehicles at the same time.

Optionally, the compartment where the socket is located can be hidden with a sliding cover with a magnetic lock mechanism.

Charging is carried out by plugging the plug on the charging cable into the socket on the station. The charging plug has a special structure to establish communication between the vehicle and the station. This communication includes information about whether the charging plug is connected correctly and the vehicle’s charging current.

All electrical and electro-mechanical functions performed at the station  are controlled by a DOMESTIC  and  NATIONAL electronic charge control system developed within GERSAN Elektrik.

The station is suitable for use in outdoor environments and has a wall-mounted steel body meeting IP65 standards.

It has a 2-year warranty and product liability insurance.

1-3 weeks.
